LUMISPHERE Light line
E-lineLight line
A line that shapes the space.
Linear lighting follows perspectives and brings clarity to architecture.
Reference : CEL-1560-40FD-03WH
01 / The product
The rhythm of light.

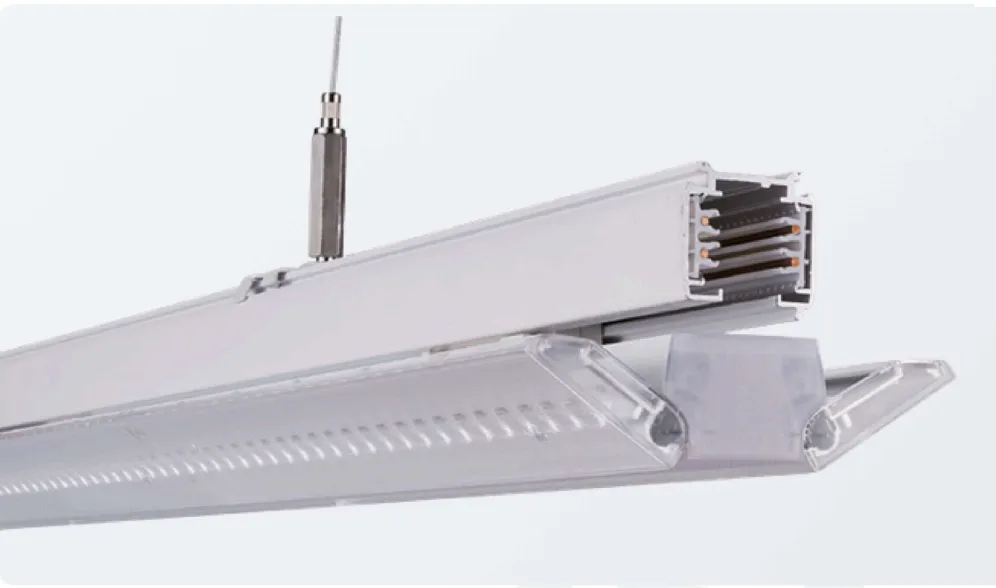

Linear LED lighting system mounted on a through-wired 3-circuit track, designed for continuous lighting in commercial and retail spaces. Its 1500 mm module with a slim 35 mm body draws a clean line of light, and combines freely with spotlights on the same track to pair general and accent lighting. 9,600 lm at 160 lm/W, on-site adjustable power (45 to 60 W via DIP switch) to tune illuminance and pool stock. Refined visual comfort (flicker free, SDCM < 3), 100,000 h lifespan. Ideal for retail, showrooms and offices.
A place in your project.
- Retail
02 / Precision in every detail
Every line starts with a plan.
Length, power and mounting are chosen together. The specifications below help plan a layout suited to your project.
- Material
- Steel — white (optional black)
- Beam angle
- 120° — PC “FD” diffuser
- Ingress protection
- IP20
- Dimensions
- 1494 × 35 × 32 mm
03 / Configuration
Tailored to your project.
These specifications help define how this model fits into your installation. Our team can help with your configuration.
Colours and beams are schematic representations. Specifications and options are detailed in each model’s datasheet.
04 / Technical data
The product, in detail.
- Brand
- LUMISPHERE
- Type
- Light line
- Reference
- CEL-1560-40FD-03WH
- Reference
- CEL-1560-40FD-03WH
- Power
- 60 W — adjustable 45 / 50 / 55 / 60 W (DIP switch)
- Luminous flux
- 9 600 lm (at 60 W)
- Efficacy
- 160 lm/W
- Colour temperature
- 4000K (neutral white)
- CRI
- 80 Ra (optional 90 Ra)
- Beam angle
- 120° — PC “FD” diffuser
- Driver
- Constant current, DIP switch (CSD2T-60A), flicker-free (Pst ≤ 1.0 · SVM ≤ 0.4)
- Colour tolerance
- SDCM < 3
- Track
- 3-wire through-wiring / single-phase — 16 A max per circuit
- Voltage
- 220 – 240 V
- Surge protection
- 3 kV (L-N and L/N-PE)
- Ingress protection
- IP20
- Material
- Steel — white (optional black)
- Dimensions
- 1494 × 35 × 32 mm
- Operating temperature
- -25°C to +40°C
- Lifespan
- 100 000 h (L80B10)
- Warranty
- 5 years
For mounting dimensions and full specifications, consult the selected model’s datasheet or contact our team.
